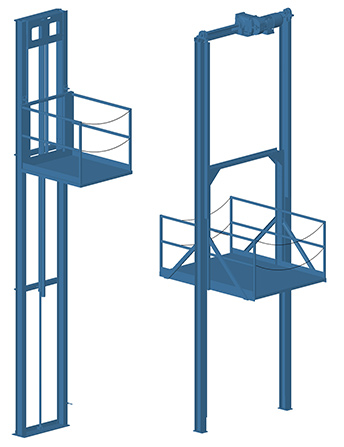

Hydraulic Vertical Reciprocating Conveyor (VRC)
5 Year Structural Warranty
1 Year Electrical/Hydraulic

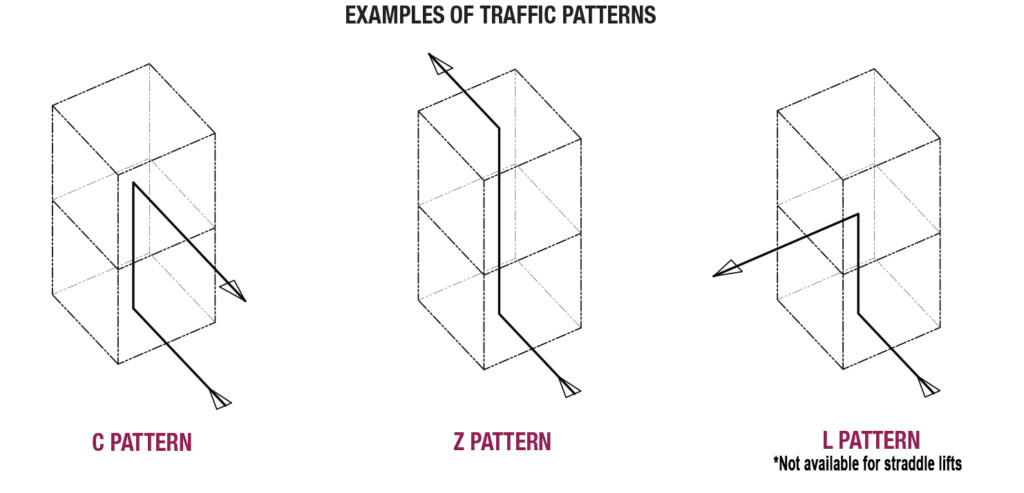

These mezzanine lifts are designed to move goods and materials between multiple floor levels quickly and safely. They may be configured for C, Z, or L loading patterns between floor levels and are available in a wide variety of platform sizes and capacities. No riders are allowed. These mezzanine lift systems may be floor mounted or pit mounted. Hydraulic VRC’s are generally less expensive than mechanical units, but are limited to two (2) level operations.
Enclosures are quoted separately.
Features and Benefits
- All of the controllers are assembled in a UL listed panel shop
- These units conform to ASME B20.1
- These units also conform to VRC Guidelines – as referenced in ASME B20.1
- Hydraulic mezzanine lifts have a locking system in case of hydraulic failure
- These hydraulic vertical lifts are fully primed and have a baked enamel finish
- Hydraulic cylinders are machine grade with return lines
SPECIFICATION TABLE CANTILEVER HYDRAULIC SLOW SPEED
| Platform | Size (in.) | Low | Overall(in.) Min Platform | Travel | Speed | No. of | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Capacity | Min | Max | Ht(in.) | Height | Width | Depth | Max(ft.) | (FPM) | Cylinders | HP |
| VCHL-1.5 | 1,500 | 36 x 36 | 72 X 72 | 2.25 | 10 +(1.5x travel) | 36 | 48 | 15 | 16.5 | 1 | 5 |
| VCHL-3.0 | 3,000 | 36 x 36 | 72 X 72 | 2.25 | 10 +(1.5x travel) | 36 | 48 | 15 | 16.5 | 1 | 5 |
SPECIFICATION TABLE CANTILEVER HYDRAULIC HIGH SPEED
| Platform | Size (in.) | Low | Overall(in.) Min Platform | Travel | Speed | No. of | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Capacity | Min | Max | Ht(in.) | Height | Width | Depth | Max(ft.) | (FPM) | Cylinders | HP |
| VCHH-1 | 1,000 | 48 x 48 | 96 X 96 | 2.25 | 105 + travel | 48 | 62 | 22 | 25 | 2 | 5 |
| VCHH-2 | 2,000 | 48 x 48 | 96 X 96 | 2.25 | 105 + travel | 48 | 62 | 22 | 25 | 2 | 5 |
| VCHH-3 | 3,000 | 48 x 48 | 96 X 96 | 2.25 | 105 + travel | 48 | 62 | 22 | 25 | 2 | 5 |
| VCHH-4 | 4,000 | 48 x 48 | 96 X 96 | 3.25 | 105 + travel | 48 | 62 | 22 | 25 | 2 | 7.5 |
| VCHH-5 | 5,000 | 48 x 48 | 96 X 96 | 3.25 | 105 + travel | 48 | 62 | 22 | 25 | 2 | 7.5 |
| VCHH-6 | 6,000 | 48 x 48 | 96 X 96 | 3.25 | 105 + travel | 48 | 62 | 22 | 25 | 2 | 7.5 |
SPECIFICATION TABLE STRADDLE MAST HYDRAULIC
| Platform | Size (in.) | Low | Overall(in.) Min Platform | Travel | Speed | No. of | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Capacity | Min | Max | Ht(in.) | Height | Width | Depth | Max(ft.) | (FPM) | Cylinders | HP |
| VSH-1 | 1,000 | 48 x 48 | 96 X 96 | 2.25 | 105 + travel | 68 | 48 | 22 | 25 | 2 | 5 |
| VSH-2 | 2,000 | 48 x 48 | 96 X 96 | 2.25 | 105 + travel | 68 | 48 | 22 | 25 | 2 | 5 |
| VSH-3 | 3,000 | 48 x 48 | 96 X 96 | 2.25 | 105 + travel | 68 | 48 | 22 | 25 | 2 | 5 |
| VSH-4 | 4,000 | 48 x 48 | 96 X 96 | 2.25 | 105 + travel | 68 | 48 | 22 | 25 | 2 | 7.5 |
| VSH-5 | 5,000 | 48 x 48 | 96 X 96 | 3.25 | 105 + travel | 68 | 48 | 22 | 25 | 2 | 7.5 |
| VSH-6 | 6,000 | 48 x 48 | 96 X 96 | 3.25 | 105 + travel | 68 | 48 | 22 | 25 | 2 | 7.5 |
